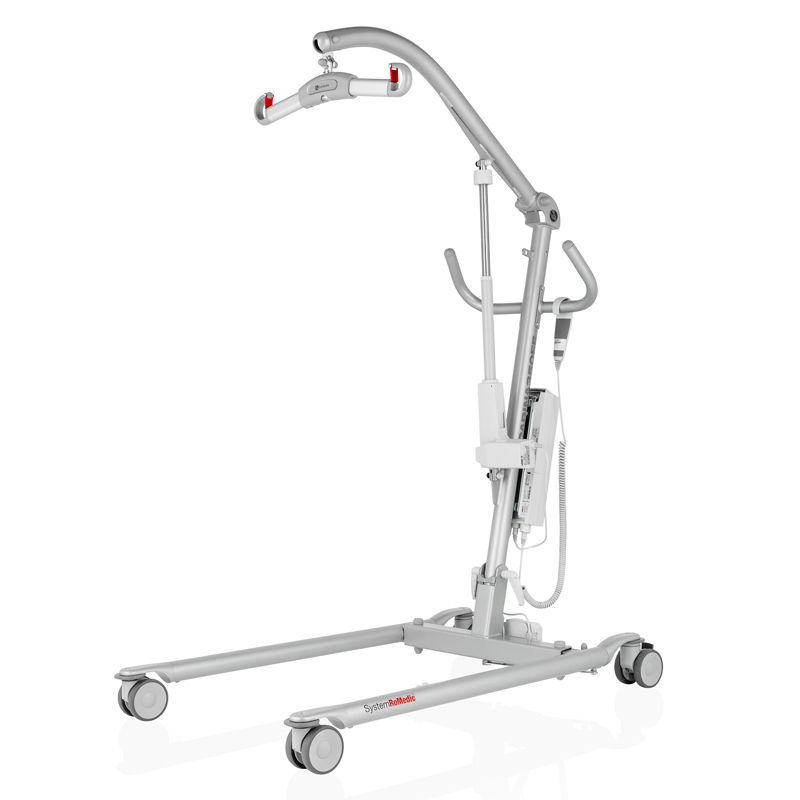

Carina350EM/EE

Product Code 60600009;60600011;60600012;60600014

A versatile and economical solution for safe and easy lifting

Carina350 is a foldable, mobile patient lift adapted for safe and easy lifting of users weighing up to 165 kg/350 lbs.

Carina350 is available in four variants, with manual or electrical base widening and with standard height or low legs. All variants are sturdy, stable and safe and, at the same time, light-weight for steel lifts.

Flexible and versatile

Carina 350 has a relatively narrow and compact design, which means that the lift can fit into and reach practically anywhere, even in tight spaces. In spite of the handy size, Carina 350 offers a very large lifting range and, therefore, Carina350 can manage most lifting situations and requirements; both low and high lifting, seated or supine, to and from the floor, bed or chair.

Easy to set up and fold

Carina350 is foldable and requires very little space during transportation and storing. With just a few, simple operations and without any tools, Carina350 can be folded or set up as required. The lift can be used in all situations and, when it is needed more elsewhere, it is easy to move between different users, rooms and homes. The lift is supplied folded.

Extra equipment as standard

Carina350 is supplied complete and ready to use, fitted with a hand control and with the following accessories and extra equipment as standard:

  • SlingBar M, a two-point aluminium sling bar with secure safety latches which prevent the sling straps from creeping out of the sling bar. The sling bar is of standard width (450 mm/17.7″) and suitable for most users and lifting situations. SWL 300 kg/660 lbs.
  • Built-in charging.
  • Maintenance-free castors, 100 mm/3.9″, with bumpers. The Handicare encapsulated twin castors provide for a smoother ride for the user while making the lift very easy to roll, even on softer surfaces. Furthermore, the castors do not gather dust and dirt from the floor, making them maintenance-free.

Quite simply, Carina350 offers a unique combination of functionality, performance and quality in relation to price. A more economical solution is hard to find!

Carina350EM/EE – features and advantages

  • Stable and secure, still comparatively light-weight
  • For users of up to 165 kg/350 lbs
  • Foldable for convenient transportation and storage
  • Easy to set up and fold, without tools or loose parts
  • Large lifting range, excellent for low and high lifting
  • Encapsulated twin castors – easy rolling and maintenance-free
  • Manual or electrical base widening
  • Also available with low legs for use with lower beds
  • Ergonomic and easy to manoeuvre, prevents work related injuries
  • Quick guide on the lift
  • Emergency stop button readily available on the control box
  • Manual and electrical emergency lowering
  • High capacity battery with long service life
  • Built-in charging
  • Many accessories for safe, easy and individually adapted lifting of users

Handicare lifting slings and other accessories

To create optimal solutions for users with different needs, Carina350 can be used in combination with lifting slings and many clever and functional lifting accessories in Handicare’s SystemRoMedic™ lifting range. To get more room in a SlingBar two-point sling bar, for example, SlingBarSpreader M side bars can be used as an accessory. SlingBarSpreader M open up the lifting sling and provide for a more reclined position. Click “Accessories” hereunder for more information.



Carina350 meets the requirements of the Medical Devices Directive for Class 1 products 93/42/EEC.



Read More

Enquire about this product

MaterialPowder-coated steelPowder-coated steelPowder-coated steelPowder-coated steel
Base wideningElectricalManualManualElectrical
Emergency loweringManual and electricalManual and electricalManual and electricalManual and electrical
Material, sling barAluminiumAluminiumAluminiumAluminium
Art. no.60600009606000116060001260600014
NameCarina350EECarina350EMCarina350EMCarina350EE
DescriptionMobile lift with electrical base wideningMobile lift with manual base wideningMobile lift with manual base widening and low legsMobile lift with electrical base widening and low legs
Safe working load165 kg165 kg165 kg165 kg
Total height1290-1840 mm1290-1840 mm1290-1840 mm1290-1840 mm
Base length1150 mm1150 mm1150 mm1150 mm
Base width, outer dimensions680-1080 mm680-1080 mm680-1080 mm680-1080 mm
Base width, inner dimensions560-940 mm560-940 mm560-940 mm560-940 mm
Total weight36 kg34.5 kg34.5 kg36 kg
Front castors, diameter100 mm100 mm35 mm35 mm
Rear castors, diameter100 mm100 mm100 mm100 mm
Lifting range580-1680 mm580-1680 mm580-1680 mm580-1680 mm
Lifting speed without load23 mm/s23 mm/s23 mm/s23 mm/s
Battery capacity2.9 Ah2.9 Ah2.9 Ah2.9 Ah
Sling bar width450 mm450 mm450 mm450 mm
Protection classIPX4 IPX4 IPX4 IPX4
Unit1 1 1 1
From bed to commode
From bed to wheelchair
From wheelchair to toilet
Higher Up In Bed
Lying To Sitting
Positioning in chair
Rising to sitting down
Standing training
Supine Transfer
Support For Gait Training
Turning In Bed
Up From The Floor
