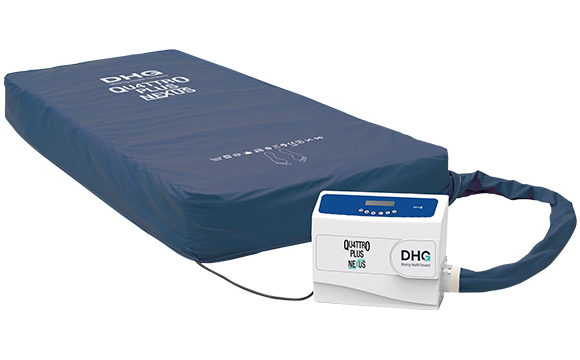

Quattro® Plus Nexus

Product Code QNS02

For over 30 years, the Quattro range has been a trusted name in high-quality, clinically effective pressure ulcer prevention.

Now, with Quattro Plus Nexus, we are making this proven 1-in-4 technology more accessible than ever. Retaining the same UK-manufactured control unit that healthcare professionals rely on, Quattro Plus Nexus delivers advanced pressure ulcer prevention and management with a streamlined, cost-effective feature set.

Designed to maintain the high standards of the Quattro range, the Quattro Plus Nexus ensures more patients can benefit from 1-in-4 alternation technology, therapy choice, and reliability – without compromise.
By expanding access to high-quality support surfaces, Quattro Plus Nexus supports both clinical and budgetary needs, helping to enhance patient outcomes in a wider range of care settings.

Suitable for all patient types, the Quattro® Plus Nexus mattress system provides an active 1-in-4 cell cycle or Continuous Low Pressure (CLP),  to provide patients with pressure relief, or pressure redistribution, to prevent and manage patients at risk of or with existing pressure ulcers.

The active 1-in-4 cell cycle supports 75% of the patient’s body at all times, on groups of three inflated cells, whilst the fourth cell deflates sufficiently to redistribute the pressure and encourage tissue reperfusion. Additional benefits of the 1-in-4 system may include increased patient comfort, and less awareness of the support surface movement.

Read More

Enquire about this product

Choice of therapy mode Active mode to provide 1-in-4 cell cycle alternation therapy or Continuous Low Pressure to provide reactive pressure redistribution
Cell-on-cell design Ensures patient support and stability throughout the cell cycle
Comfort control Adjustable in either therapy mode to help patient compliance
AUTOsupport™ Automatically adjusts pressure within each of the cells throughout the cycle so that support, posture and therapy are constantly maintained at optimum levels
Auto-lock Prevents inadvertent button operation and therapy change
Phase Flow™ Control unit operates on demand only, reducing power consumption, noise and extending service life
Audible and visual alerts Indicate current operation status and fault conditions
CPR function Ensures simple and effective rapid deflation to enable CPR procedures
Transport facility Allows unpowered support of the user for up to 12 hours
Multi-stretch cover Waterproof and moisture-vapour permeable with welded seams. Can be removed for laundering
Modular construction Enables simple repair/service on sit for minimum downtime
Product Code QNS02/QNP02/QNM02
SWL 220kg
Mattress Length 195/205cm
Mattress Width 80/85/90cm
Mattress Height 18cm
Number of Cells 22/23
Mattress Weight 10kg
