RiseAtlas 450

Product Code 50100051;50100057

Unlimited lifting solutions – for users weighing up to 205 kg/450 lbs

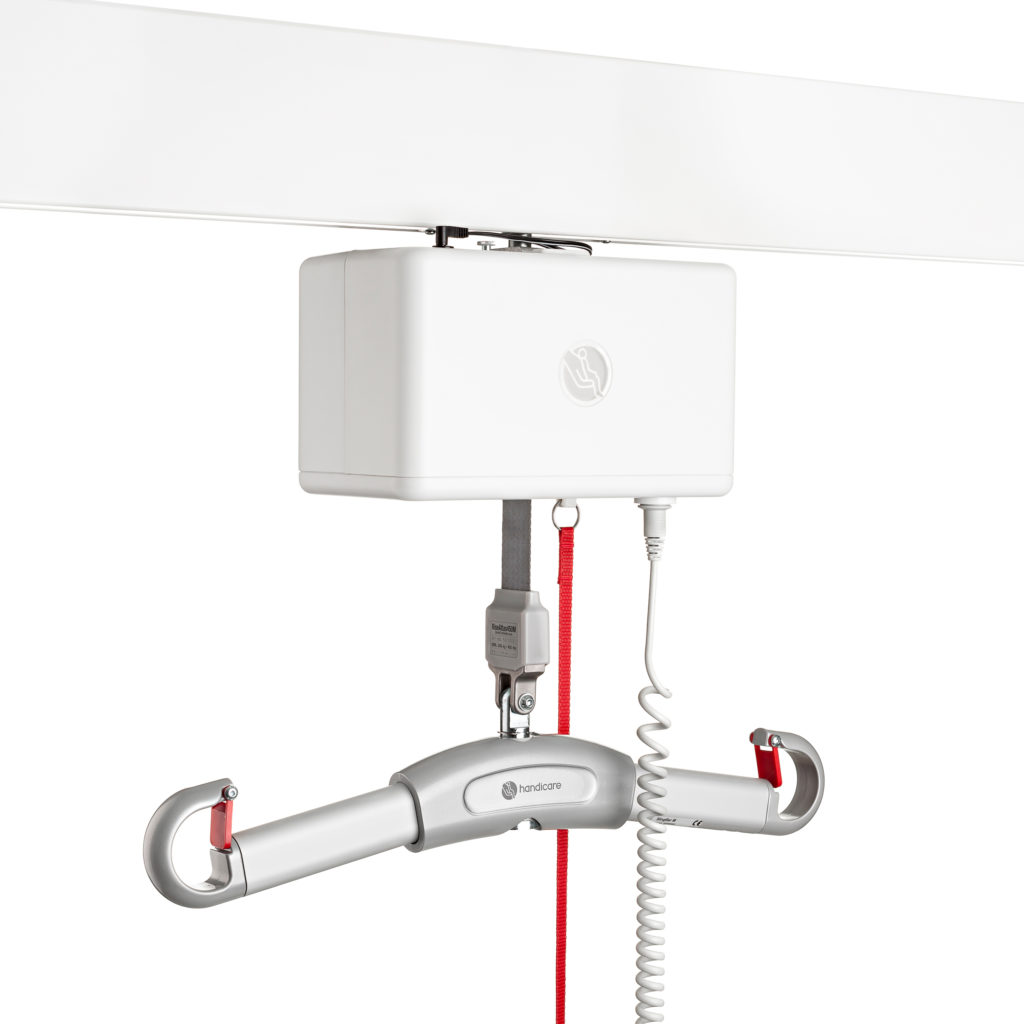

RiseAtlas450 is a safe and easy-to-use stationary ceiling lift unit available in two models and two special versions with and without built-in transfer motor and other features and functionalities. The choice depends on what settings and situations the ceiling lift unit will be used in and, of course, the needs of the users.

Manual transfer and QuickTrolleySystem

RiseAtlas450M is manually transferred along the rail (M for manual) and features the unique SystemRoMedic™ QuickTrolleySystem. This model is supplied fitted with a quick release trolley which readily allows for dismantling of the ceiling lift unit from the rail as well as for presetting the ceiling lift unit and the lift strap to an angle of 45 or 90 degrees towards the rail for smooth and convenient transfers of users from one room to another.

High humidity – special version for wet environments

RiseAtlas450M, with QuickTrolleySystem is also available in a special version which is designed for use in environments where moisture and dampness are present.

Hand control charging

RiseAtlas450M, with QuickTrolleySystem feature easy and convenient hand control charging as standard. The charging station is integrated in a small and discreet holder and parking place for the hand control. The holder is easily installed on the wall, in convenient proximity of the ceiling lift unit’s parking place.

In-rail and end point charging

The two special versions of RiseAtlas450 feature a unique charging solution, with one trolley for two charging options as standard. The ceiling lift units can be set to function either with end point charging or with in-rail charging. If necessary, the settings can easily be altered.

As an optional extra, RiseAtlas ceiling lift units with hand control charging can also be equipped with this unique charging solution.

For all rail systems and settings, in all situations and for all user needs

RiseAtlas450 can be used in all settings and in all types of rooms, both on permanent rail systems and on portable, freestanding lift stands. When used with the appropriate lifting accessories, RiseAtlas450 provides secure, comfortable and individually adapted lifting of users in connection with seated or horizontal transfers to and from the bed, wheelchair or toilet.


RiseAtlas450 offers a large lifting area and the possibility of both very low and very high lifting, making it an excellent solution also for lifting from the floor and for gait training and standing training. RiseAtlas450 can also be used for convenient transfer of users from one room to another.

Compact and light-weight

RiseAtlas450 features unusually small measurements, extremely low weight and a number of unique and very practical features as standard. The handy size offers many practical advantages. And combined with the modern and elegant design of the ceiling lift unit, it also contributes to the creation of professional and highly functional environments with a harmonic and human atmosphere.


In fact, RiseAtlas450 is a modern and stylish ceiling lift unit offering unlimited lifting solutions with more performance, more flexibility, more simplicity and convenience, and more reliability compared to other ceiling lift units available on the market.


  • Compact and extremely light-weight
  • Modern, elegant and hygienic design
  • Very easy to use, providing safe working conditions and allowing the caregiver to remain close to the user throughout the entire lifting procedure
  • Moves silently and gently, soft start and stop
  • Ergonomic and easy-to-use hand control
  • On/Off-button on the hand control prevents unauthorized use of lift functions
  • Night light
  • Manual emergency stop
  • Electrical and manual emergency lowering
  • Overload protection
  • Over speed protection
  • Slack strap switch
  • Efficient strap control preventing accidental twisting of the lift strap
  • High capacity, environmentally friendly NiMH battery
  • Easy and convenient hand control charging as standard (except for special versions)
  • The high humidity and SmartPark special versions feature a unique charging solution, with one trolley for two charging options
  • In-rail/end point charging is also available as an accessory for models with hand control charging as standard
  • Discreet information panel
  • Easy to service
  • Diagnostics, a special software available as an accessory allows a PC to access further information about the ceiling lift unit
  • Many accessories for safe, easy and individually adapted lifting of user

SystemRoMedic lifting slings and other accessories

To create optimal solutions for users with different needs, all models and special versions of RiseAtlas450 can be used in combination with lifting slings and many clever and functional lifting accessories in SystemRoMedic’s Lifting range.


RiseAtlas450 meets the requirements of the Medical Devices Directive for Class 1 products 93/42/EEC.


Read More

Enquire about this product

Transfer in railManualManual
Material, chassisAluminiumAluminium
Material, coverNon flammable ABS plasticNon flammable ABS plastic
Emergency loweringElectrical and manualElectrical and manual
Emergency stopManualManual
Hand controlElectrical, 4 buttonsElectrical, 4 buttons
Hand control chargingNoStandard
In-rail chargingOptional, standardOptional, accessory
End point chargingOptional, standardOptional, accessory
Efficient strap controlStandardStandard
Art. no.5010005150100057
NameRiseAtlas 450HHRiseAtlas 450M
DescriptionWith QuickTrolleySystem, high humidity. With hand control and charger. Sling bar ordered separately.With QuickTrolleySystem. With hand control and charger. Sling bar ordered separately.
Total length266 mm266 mm
Total width151 mm151 mm
Total height156 mm156 mm
Total weight7.3 kg7.2 kg
Lifting range2400 mm2400 mm
Lifting speed without load50 mm/s50 mm/s
Lifting speed with load39 mm/s39 mm/s
Sound level with load55 db(A)55 db(A)
BatteryNiMH 24V 3.2 Ah/768Wh NiMH 24V 3.2 Ah/768Wh
Protection class, lift unitIPX4 IP20
Protection class, hand controlIPX4 IPX4
Safe working load205 kg205 kg
Item No.50100051 50100057
Unit1 1
Transfer speed without load140 mm/s
Transfer speed with load120 mm/s
From bed to commode
From bed to wheelchair
From wheelchair to toilet
Higher Up In Bed
Lying To Sitting
Positioning in chair
Rising to sitting down
Standing training
Supine Transfer
Support For Gait Training
Turning In Bed
Up From The Floor
